I replaced the 2011 Elecsol batteries with a new set. But the new AGMs are bigger. I moved the engine battery under the port side rear berth.

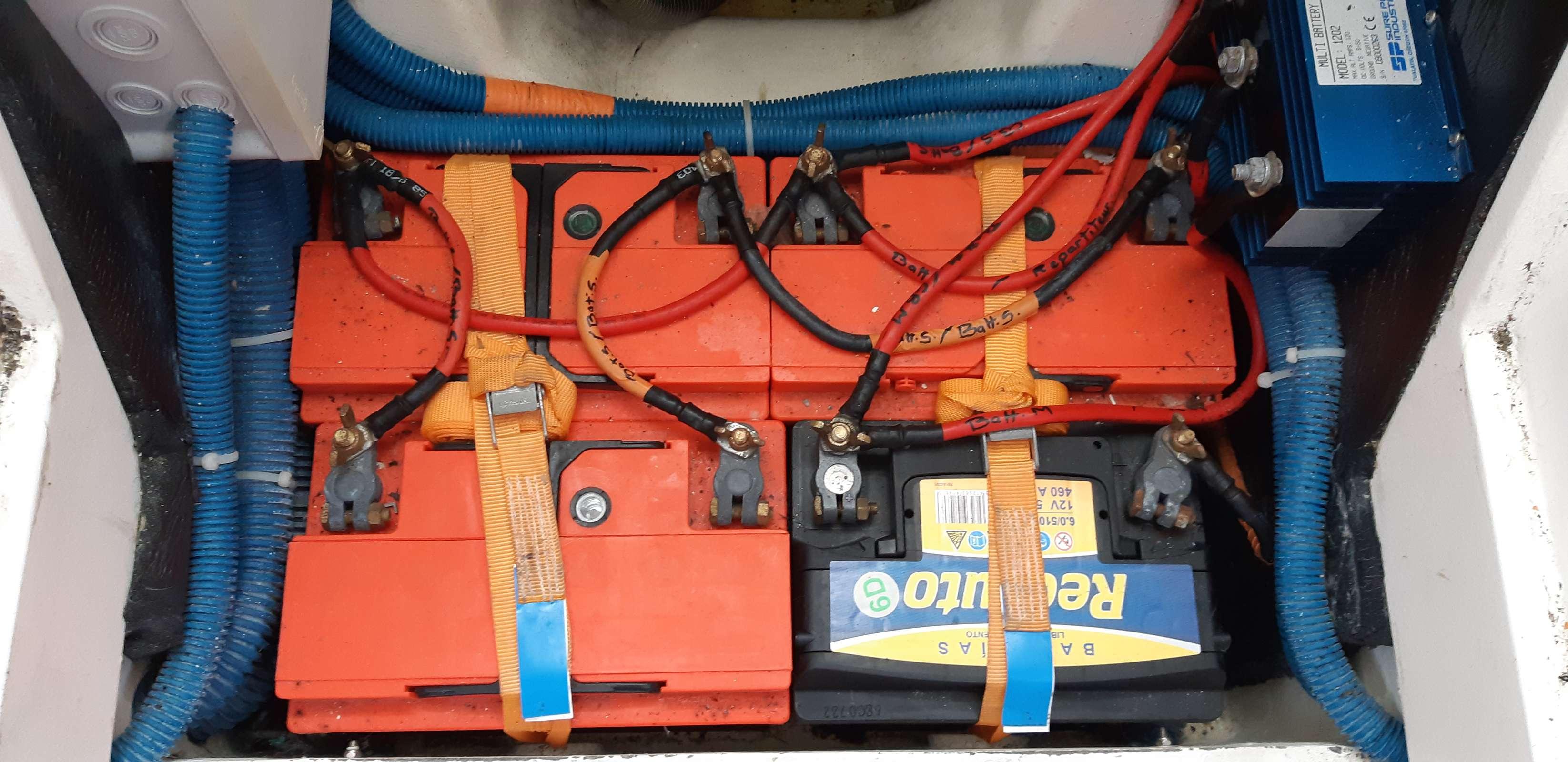

Old configuration:
New configuration :

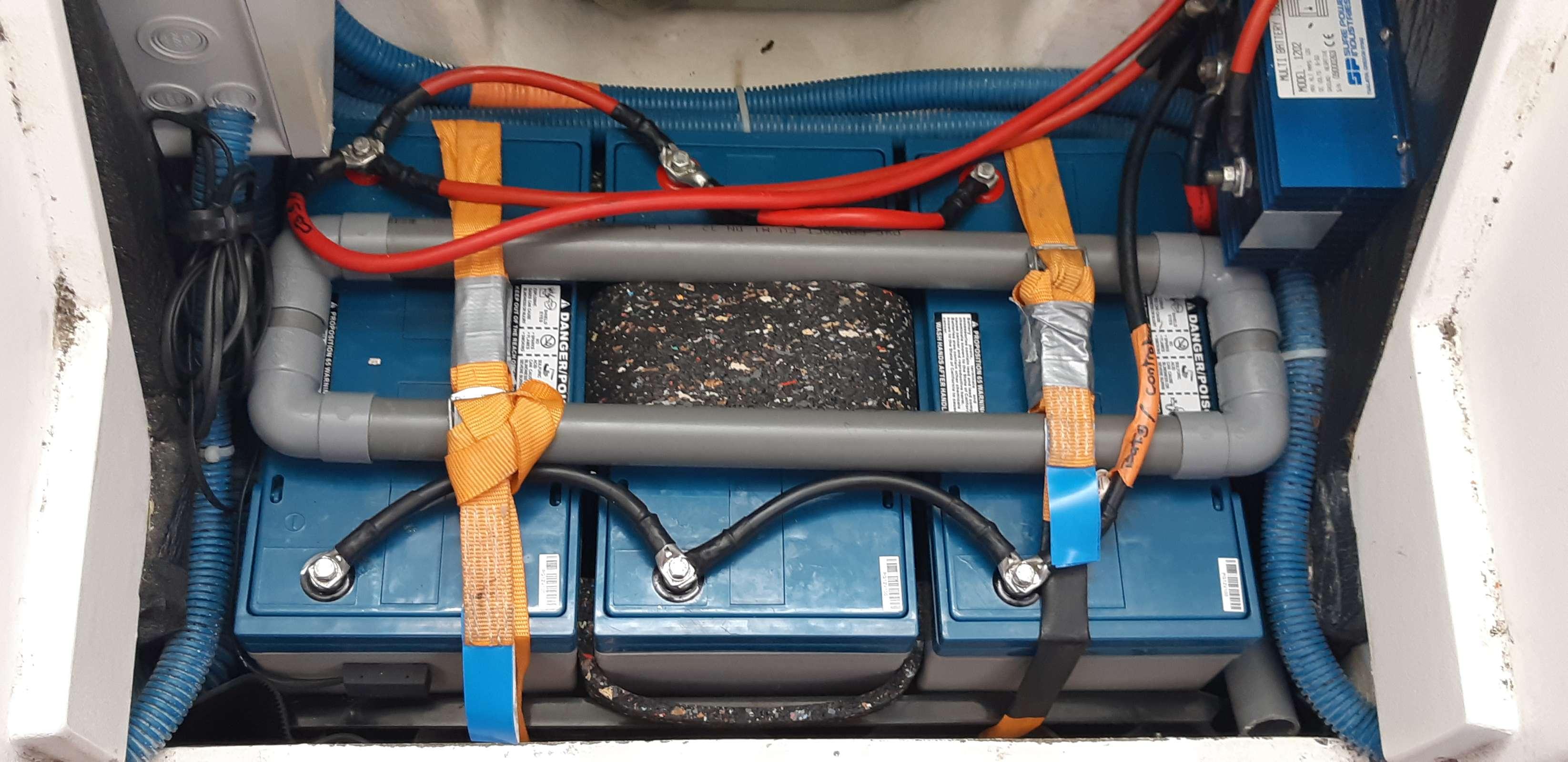

AGM service batteries

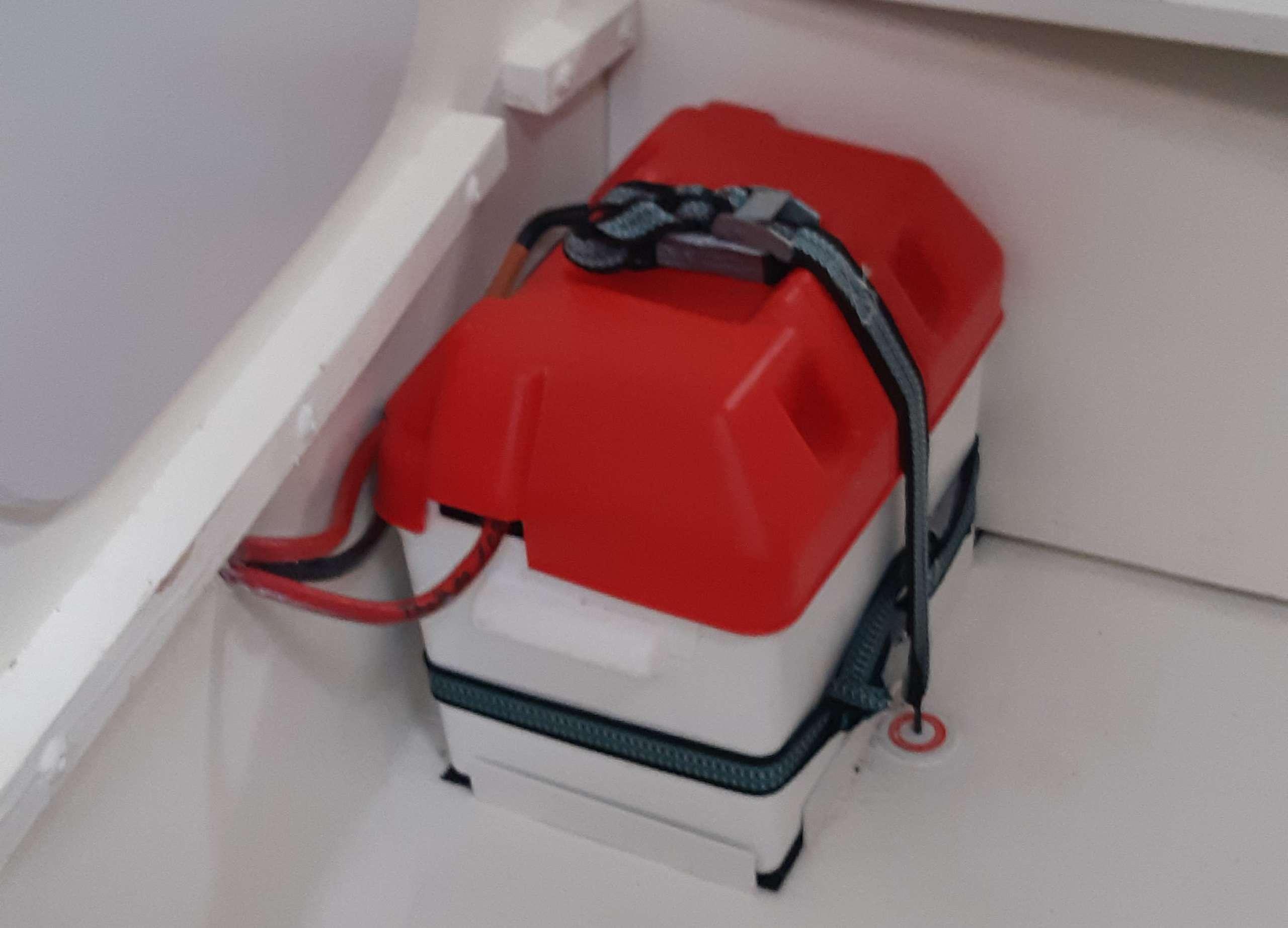

Motor battery :
I had to redo all the connections, because the new batteries have 6mm terminals.
The service batteries are placed in a plastic tray that I cut at the ends to leave some space between the batteries. The whole thing is placed on a waterproof plastic mat. I also had to put a pvc bar to block the middle battery.
The engine battery is placed in a tray, blocked by glued pvc T-rings and attached with straps held by glued padeyes. Many thanks to Seb (from the Structures yard) for his technical assistance.
